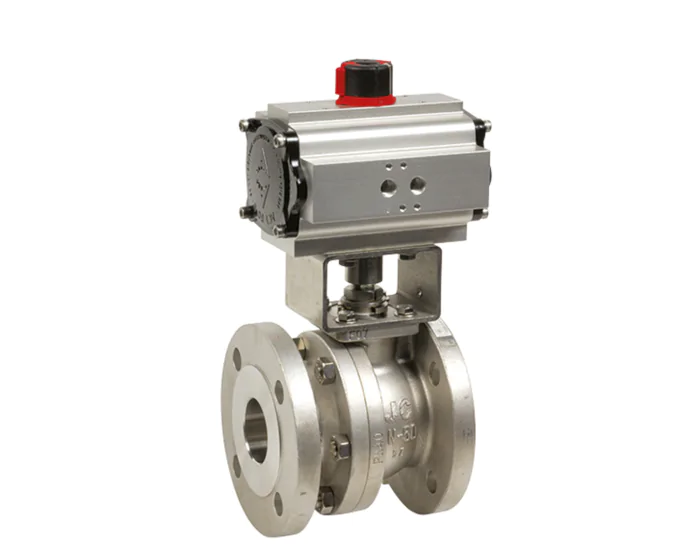

The 540IIS series JC VALVES ball valve has a CF8M stainless steel body and ball, and STANSIT seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Graphite |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| CE | Risk category I |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16 | 516IIS065015103 | S1002674 |
€1,256.41
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16 | 516IIS065016105 | S1002675 |
€1,536.14
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return Flanged PN16 | 516IIS080016106 | S1002676 |
€1,973.40
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return Flanged PN16 | 516IIS125016107 | S1002677 |
€4,432.77
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return Flanged PN16 | 516IIS150016108 | S1002678 |
€8,865.53
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40 | 540IIS015015100 | S1002679 |
€561.00
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40 | 540IIS015016101 | S1002680 |
€625.34
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40 | 540IIS020015100 | S1002681 |
€607.21
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged #150 PN20 | 540IIS020016102 | S1002682 |
€658.76
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting Flanged PN40 | 540IIS025015101 | S1002683 |
€651.33
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return Flanged PN40 | 540IIS025016102 | S1002684 |
€743.71
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40 | 540IIS032015101 | S1002685 |
€833.79
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40 | 540IIS032016102 | S1002686 |
€924.17
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting Flanged PN40 | 540IIS040015102 | S1002687 |
€878.34
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40 | 540IIS040016103 | S1002688 |
€934.67
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting Flanged PN40 | 540IIS050015102 | S1002689 |
€963.21
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return Flanged PN40 | 540IIS050016104 | S1002690 |
€1,145.66
(excl. btw)
|
add to cart |
